Back to GalleryPrecision ToolingMachined to Molded
airplane

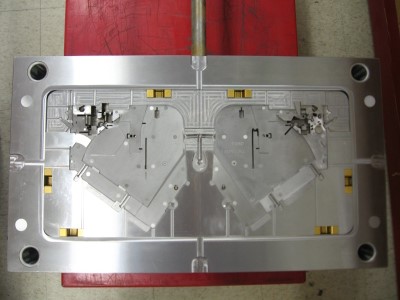

Two cavity (1 +1) family tool for high precision
machine side panels. A detail view shows the
"busy" parting line and cavity geometry.
Also pictured is one of the molded parts.
airplane
airplane

airplane airplane
Single cavity tool with slides and core change, produces two different molded parts,
saving money over two complete tools.
All mold parts are changeable from the parting line, saving setup time.
airplane airplane
Two cavity (1 +1) family tool with complex parting line and tons of side action,
including a set of slides shutting off on a slide activated submarine core pin.
Also pictured is a sample of the molded parts.

airplane airplane
Deep draw single cavity tool with multiple shutoffs between A B and slides.
The core is water cooled with custom sleeve ejection.
Also pictured is a sample of the molded parts.
